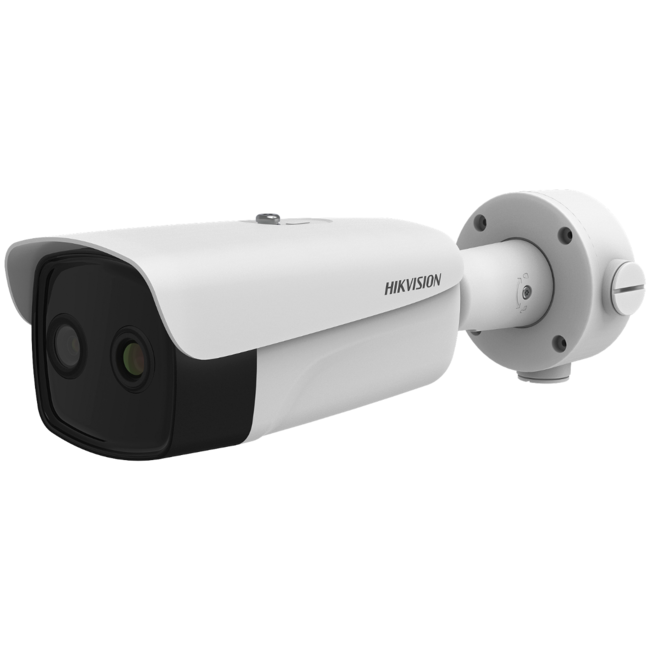

Hikvision DS-2TD2637B-10/P | Koortsmeting met gemonteerde warmtebeeldcamera

Lichaamstemperatuur screening bullet warmtebeeldcamera voor een vaste montage. Deze HIKVISION DS-2TD2637B-10/P is geschikt voor het meten van lichaamstemperaturen van 30°C tot 45° graden met een nauwkeurigheid van 0.5°C. Deze warmtebeeldcamera heeft een thermische resolutie van 384×288pixels.

Specificaties

Thermal

_x000D_
• Image Sensor: VOx Uncooled Focal Plane Arrays
_x000D_
• Resolution: 384×288
_x000D_
• Pixel Interval: 17μm
_x000D_
• Response Waveband: 8μm to 14μm
_x000D_
• NETD: Less than 40 mK (@25°C,F#=1.0)
_x000D_
• Focal Length: 9.7mm
_x000D_
• Focus Mode: Athermalized
_x000D_
• IFOV: 1.75 mrad
_x000D_
• Aperture: F1.0
_x000D_
• Field Of View: 37.5° × 28.5° (H × V)
_x000D_
• Min. Focusing Distance: 1.2 m
_x000D_

Optical

_x000D_
• Image Sensor: 1/2.7" Progressive Scan CMOS
_x000D_
• Resolution: 2688×1520, 4MP
_x000D_
• Min. Illumination: Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
_x000D_
• Field Of View: 84° × 44.8° (H × V)
_x000D_
• Focal Length: 4mm
_x000D_
• Focus Mode: Fixed
_x000D_
• Shutter Speed: 1s to 1/100,000s
_x000D_
• White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
_x000D_
• Day & Night Mode: IR cut filter with auto switch
_x000D_
• WDR: 120 dB
_x000D_

Illuminator

_x000D_
• IR Distance: Up to 50 m
_x000D_
• IR Intensity And Angle: Automatically adjusted
_x000D_

Feature

_x000D_
• Bi-Spectrum Image Fusion: Display the details of optical channel on thermal channel
_x000D_
• Picture In Picture: Display partial image of thermal channel on the full screen of optical channel
_x000D_

Smart Function

_x000D_
• Temperature Measurement: Support 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
_x000D_
• Temperature Range: From 30°C to 45°C (86°F ~ 113°F)
_x000D_
• Temperature Accuracy: ± 0.5 °C
_x000D_

Network

_x000D_
• Main Stream: Thermal: 50fps(1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720);Optical: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
_x000D_
• Sub Stream: Thermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
_x000D_
• Video Compression: H.264 (Baseline/Main/High Profile) /MJPEG/H.265
_x000D_
• Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
_x000D_
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
_x000D_
• API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
_x000D_
• Security: Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
_x000D_
• Simultaneous Live View: Up to 20
_x000D_

Interface

_x000D_
• Clienti: VMS-4200, Hik-Connect
_x000D_
• Web Browser: Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
_x000D_
• Alarm Input: 2-ch inputs (0-5vDC)
_x000D_
• Alarm Output: 2-ch relay outputs, alarm response actions configurable
_x000D_
• Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
_x000D_
• Audio Input: 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
_x000D_
• Audio Output: Linear Level; Impedance: 600Ω
_x000D_
• RS4851, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
_x000D_
• Analog Video Output: 1.0V [p-p]/75Ω, BNC, PAL/NTSC
_x000D_
• Communication Interface: 1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
_x000D_
• On-Board Storage: Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording
_x000D_

General

_x000D_
• Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
_x000D_
• Wiper: No
_x000D_
• User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, User
_x000D_
• Power: 24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
_x000D_
• Power Consumption: 18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
_x000D_
• Work Temperature/Humidity: From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
_x000D_
• Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
_x000D_
• Dimension: 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
_x000D_
• Weight: Approx. 1.82 kg (4.01 lb)
