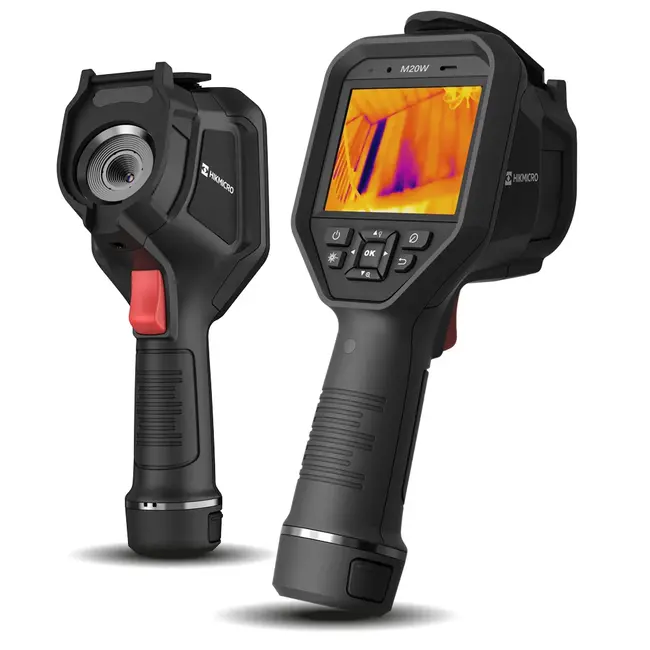

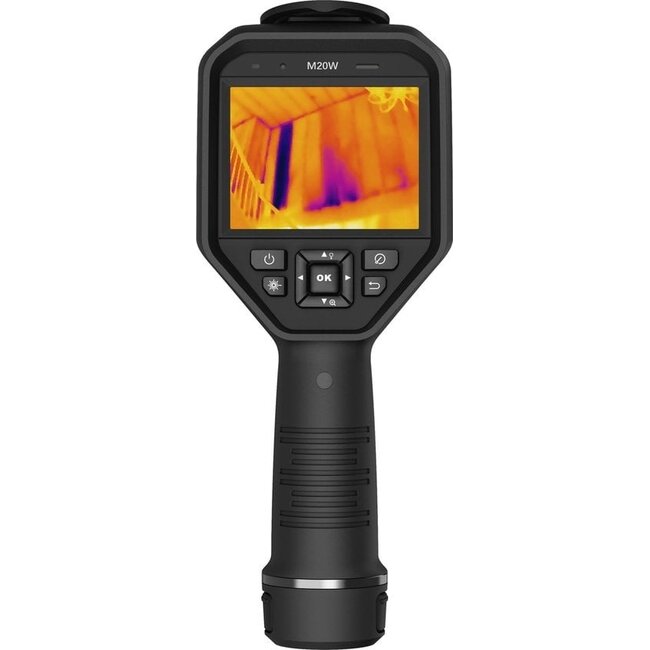

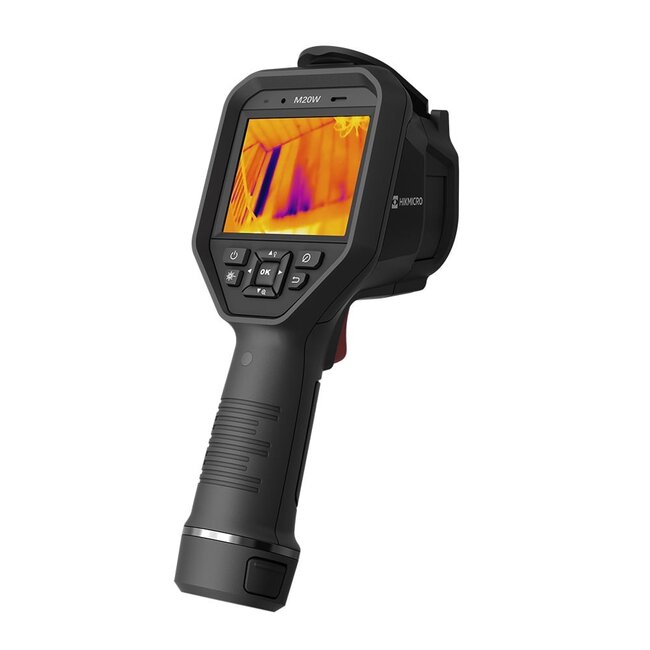

HIKMICRO M20W Thermal Camera | HM-TP22-3AQF/W-M20W

HIKMICRO M20W handheld thermography camera is specially designed for professional inspections of large objects where a wider FOV captures more of the scene in one picture. It’s equipped with a 256 × 192 resolution thermal detector, 50° x 37.2° fixed focus lens, and an 8MP resolution visual camera. The high resolution 3.5-inch touch screen displays crisp, clear images and streamlines camera operations. Imaging modes include thermal, visual, picture in a picture of the optical and thermal view, and fusion of both channels. The M20W quickly identifies potential faults and quantifies the impact with accurate temperature measurement, provides detailed documentation to complete your inspections efficiently.

Key Features:
- Thermal resolution: 256 x 192  (49.152 pixels)
- NETD : < 40mK (@ 25 °C,F#=1.0)
- Temperature measurement range : -20 °C - 550 °C
- Accuracy: Max (±2 °C or ±2%)
- Measurement Presets: Center spot, Hot spot, Cold spot, User Preset Point/Line/Area
- Focus Free
- 25 Hz image frequency
- 3.5’’ LCD touch screen display

Specifications:
- FOV (Field of View): 50° × 37.2°
- Digital Zoom: 1x / 2x / 4x / 8x
- Image modes: Thermal/Optical/Fusion/Picture-in-Picture
- Storage media: Removable Micro SD Card (16 GB)
- Laserpointer: Yes
- Wi-Fi: 802.11 a/ac/b/g/n (2.4 and 5 GHz)
- Bluetooth: Bluetooth 4.2
- Text comment: Max 200 Characters
- Voice comment: Max 60 Seconds
- Battery Operating Time: 5 Hours Continuous Running
- Protection Level: IP54
- Interface: USB TYPE-C
- Weight: ± 660 gram
- Dimensions: 244mm × 100mm × 104mm

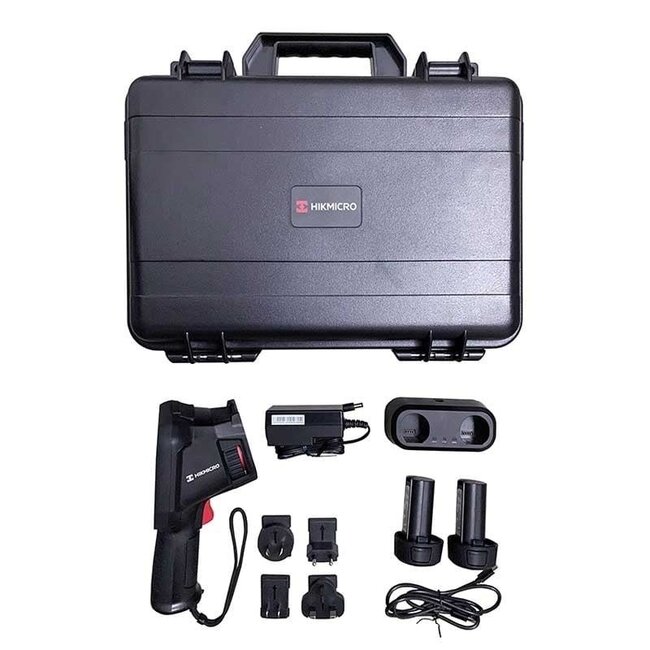

Packinglist:
- M20W Thermalcamera
- Quick start guide
- Adapters
- USB cable
- Power Adapter
- Battery
- Charging base
- Box
- Wrist strap
